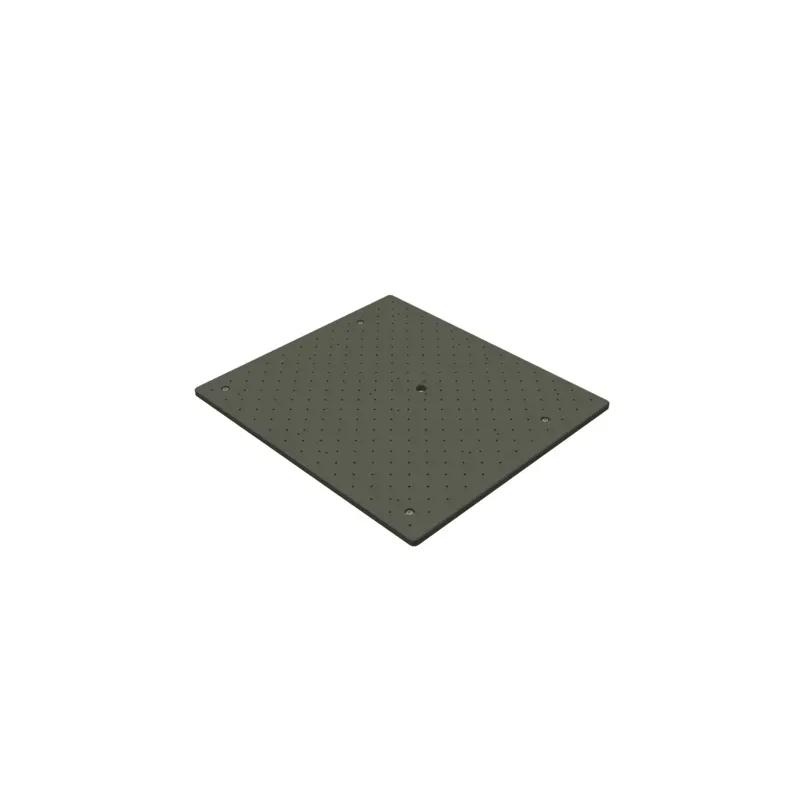

Special base plate 600 x 670 x 15

Parametry

Product line

eco-fix

Hmot. [g]

0

Popis

Fixturing base plate designed for direct mounting on the granite table of CRYSTA-Apex V 574. The base plate provides multiple possibilities for fixing fixtures and direct construction of jigs on the CMM. It is equipped with fixing threads M6 in a 25mm / 50

Application

CMM

Component type

Base plate

Units

1

Length 1 [mm]

600

Závit 1

M6

Width 1 [mm]

670

Height 1 [mm]

15

Thread spacing 1 [mm]

50

Thread 2

M8

Thread spacing 2 [mm]

25

Measuring range X [mm]

500

Measuring range Y [mm]

400
